DEER ISLE 37 Specs
  • LOA---36' 9"
  • LWL---34' 1"
  • BEAM---12' 0"
  • DRAFT---3' 8"
  • DISPLACEMENT---19000 lbs.
  • TANKS---70 gals. Fuel, 20 gals. Water

A 37' Vee Bottom Long Range Cruiser
Brewer / Wallstrom Design  #54

The Deer Isle 37 is a husky cruiser designed for long range comfort, operating economy and seaworthiness. Her construction is of seam-batten planking on heavy sawn frames providing ease of construction, durability and a tight hull without the need for caulking. Decks and cabin truck are of plywood construction, fibreglass or Vectra covered. A small boatyard, or a competent amateur craftsman, will encounter no difficulties in building her.

    Power may be a single diesel engine of 75-160 HP or twin engines each 75-125 HP, providing cruising speeds from 8 to 14 knots as required. Fuel capacity of 180 gallons and water tankage of 150 gallons assure a large operating radius. The vee bottom hull is of the semi-displacement type with a displacement/length ratio of 214.

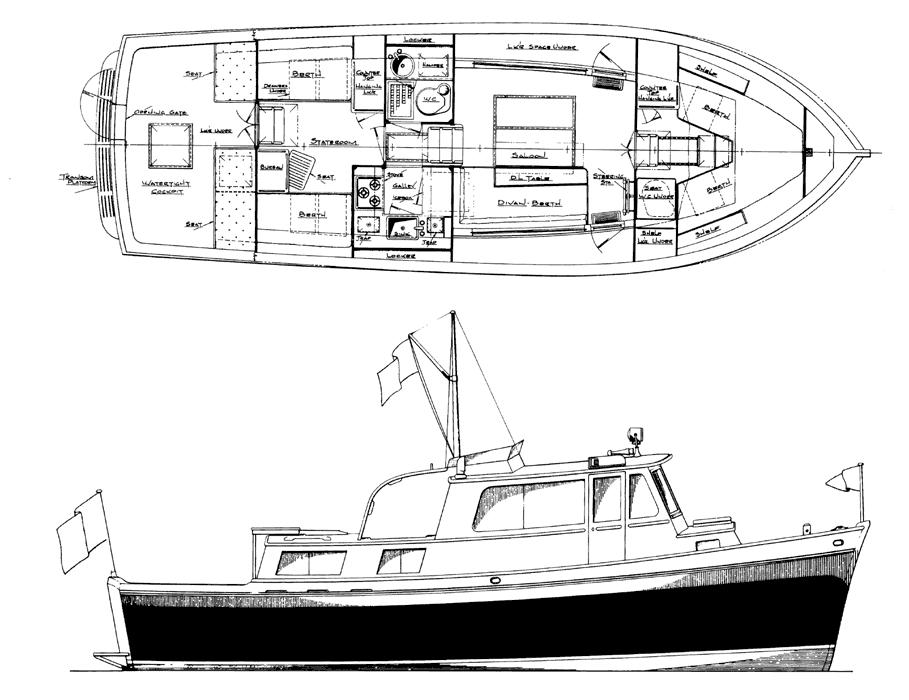

Deer mIsle Layout & Profile
click photo to see larger image

The accommodations provide berths for five persons in three separate cabins and a sixth berth can be fitted if required. The galley and toilet facilities are  quite complete and there is good storage space throughout the vessel.

   The yachtsman who requires an able and comfortable coastal cruiser will find the DEER ISLE 37 to be well suited to his needs



Study Plans: $75 US

Complete Plans: $795 US

Ordering Information

Study plans contain sufficient drawings to price out materials or obtain a professional bid; the cost of study plans is credited if complete plans are later ordered. Complete plans include rights to build one boat, plus reasonable consultation during construction.
