Sailing Vessel Designs for Wood Construction
All prices are in US Funds

  • CAPE COD BAY  A trailerable 18' sister to our popular CAPE COD CAT; accommodations for an adventurous couple for a week or a weekend.
    SP-$35 US/ FP-$135 US

  • PHIALLE This is a 20' keel centerboard sloop. Only 2'2" draft with board up. Plywood construction. 3 berths. A good performing little yacht.
    SP-$35 US/ FP-$135 US

  • CAPE COD CAT A very perky 22' down east cat. Vee bottom plywood hull; round bilge lines available with Fer-a-lite construction (or other suitable methods if you can work it up). 2 berths, huge cockpit. Literally dozens built and a very successful design.
    SP-$35 US/ FP-$195 US

  • GRAND BANKS 22 A dory hulled 22' ketch. Perky fin keel hull with skeg rudder. Flat bottom plywood construction; seam batten carvel topsides optional. Many amateur built. Has completed voyages from San Francisco to Alaska.
    SP-$35 US/ FP-$195 US

  • BAHAMA SLOOP Centerboard gaff 25' sloop. A perky daysailer and weekender for the skipper who cherishes a very traditional flush deck, gaff rigged cutter. Strip planked, round bilged hull.
    SP-$35 US/ FP-$295 US

  • CHAPPIQUIDICK 25' Cape Cod cat boat. Plans for conventional carvel planked construction or double chine plywood hull available. The latter hull could be built in steel as well. Very traditional type. 4 berths. Enclosed head. A well proven design.
    SP-$65 US/ FP-$450 US

  • LUBEC BOAT 25'9" modeled after a Maine Eastport pinky, a seaworthy commercial fishing boat of the late 1800's.  She offers a large cockpit for daysailing plus good cruising accommodations for a couple.  Construction is of strip planking and the simple, oldtime rig will attract attention wherever she sails.
    SP-$60 US/ FP-$450 US

  • GRAND BANKS 28 Modified dory hull; an able, full keel 28' auxiliary designed for ply bottom and strip planked topsides. Gaff sloop, ketch, schooner or Bermudan ketch rigs. 4 berths, enclosed head and 5'6" headroom. Handsome and able vessel.
    SP-$45 US/ FP-$295 US

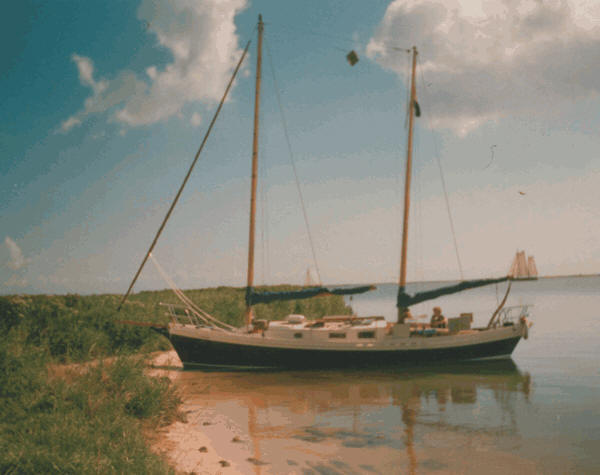

    Mystic Sharpie

    click photo to see larger image

  • MYSTIC SHARPIE 32' sharpie ketch. Plywood construction, double ended pinky stern. Very handsome yacht. 4 berths, ob motor in well. Has reached at 10 knots under sail.
    SP-$45 US/ FP-$295 US

  • TERN 32' ketch with vee hull for plywood or carvel planking, outboard rudder, full keel. Has voyaged from New Orleans to Turkey and return. Accommodations for up to 5, but 2-3 is better. A boat that can go anywhere.
    SP-$50 US/ FP-$395 US

  • CAPE CARIB 32' attractive full keel ketch for a couple or small family. Construction is of strip planking on bulkhead frames, designed with the amateur builder in mind. Over 40 of these yachts have been built and have proven their seaworthiness in an Atlantic hurricane and a China Sea typhoon.
    SP-$60 US/ FP-$495 US

  • INGENUE  33' wineglass hull is available as a schooner or cutter and with extended stern. As a schooner she has an enviable racing record and is a proven performer. Construction is strip planking on bulkhead framing.
    SP-$60 US/ FP-$495 US

  • PROSPECTOR 33'strip planked, blue water cutter.  Classic styling with a sweeping sheer, but modern fin / skeg underbody.  She has a roomy galley, spacious head, and accommodations for 4 to 5.
    SP-$60 US/ FP-$750 US

  • MORGANA LE FAY 34' true blue water cutter with moderate fin keel and skeg rudder. Roomy, comfortable and seaworthy. Strip planked on laminated backbone and bulkhead framing.
    SP-$75 US/ FP-$895 US

  • G.T. WHITE 35' husky sloop or cutter rigged  cruiser, available as center or aft cockpit. Round-bilged, carvel planked, full keel hull. A go-anywhere cruiser.
    SP-$50 US/ FP-$495 US

  • MB&S 35 35'to 37' well proven full keel, ocean going cutter with excellent accommodations for a family, or two couples, for extended blue water cruising. Construction is of strip planking on bulkhead framing and plans are available as flush deck or traditional trunk cabin versions.
    SP-$75 US/ FP-$695 US

  • AMEE 37', fast, strip planked double ended ketch or cutter. Available with fin keel/c.b. or deep 6' fin. Center cockpit layout accommodates 6-7 in 3 cabins.
    SP-$75 US/ FP-$895 US

  • FRIENDSHIP SLOOP 39', large and traditional version of the Friendship Sloop with a lovely sheer line and clipper bow so characteristic of this type.
    SP-$90 US/ FP-$995 US

  • PACIFIC 42 Burl Ives and Raymond Burr have owned one of these clipper bowed, center cockpit ketches. Wineglass hull, full keel, carvel or strip planked. A real seagoing, live aboard cruiser.
    SP-$100 US/ FP-$1395 US

  • TROUBADOR A handsome 42' pilot house sloop. Fin keel, spade rudder. Nicely balanced ends and a sweet sheer line. Epoxy strip/laminated construction. Accommodates 6-7 but 2 couples could cruise for months in her. Stall shower, large galley. Also available for aluminum construction.
    SP-$100 US/ FP-$1095 US

  • BLACK VELVET II A 43' strip planked, center cockpit, fin keel sloop/cutter. Fast and weatherly; a sister won 1st overall PHRF in the '83 Swiftsure race. 6-7 berths in 3 cabins, 2 heads. One of my favorite designs.
    SP-$110 US/ FP-$1495 US

  • TIME OF WONDER  45' pinky keel schooner. Strip planked. A true classic with her gaff rig, clipper bow and long sprit. Accommodates 6-7 in 3 cabins.
    SP-$120 US/ FP-$1795 US

  • SOPHIA CHRISTINA 46' pilot schooner. Another handsome full keel gaff rigger with sweeping sheer, but with plumb bow and raking transom. Carvel planked on oak frames. A beauty, and surprisingly fast. 8 berths in 3 cabins.
    SP-$120 US/ FP-$1795 US

  • ENTERPRISE 54' pilot house ketch well suited for live-aboard or world cruising. Traditional wood construction is designed to husky scantling rules and her keel/centerboard design offers shoal draft for exploring the world's less traveled waters.  A large galley and comfortable accommodations for 6 to 8 persons provide versatility as a private yacht or as a crewed charter vessel.
    SP-$110 US/ FP-$2995 US

  • TRAVELLER III 61' classic centerboard ketch, originally designed for charter service. Sleeps up to 8 in 4 cabins. Huge aft cockpit. Carvel double planked hull. A very powerful craft. The original is now at the bottom off Machias, ME with a cargo of salty marijuana. Ideal smuggler's yacht.
    SP-$180 US/ FP-$2195 US


    click photo to see larger image

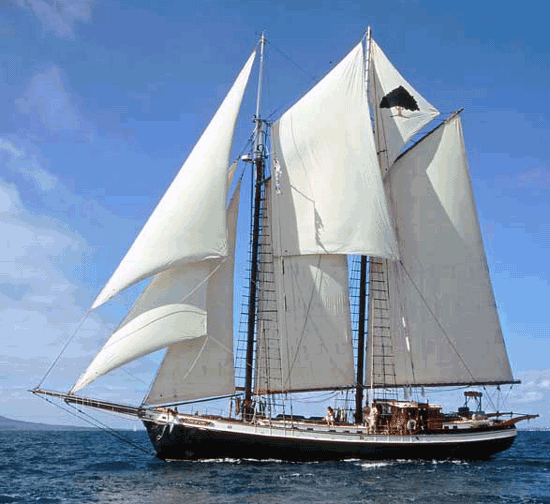

  • TREE OF LIFE 68' gaff schooner. Strip plank on laminated frames. Accommodates 10-12 in 5 cabins and features huge saloon, large galley, roomy pilot house. This large, traditional schooner can spread close to 4000 sq. ft. of sail and is an ideal charter cruiser.
    SP-$295 US/ FP-$5995 US

We accept US & CDN personal checks & Money Orders (be sure they are cashable outside the US) by mail. Western Union money transfers can also be used, please e-mail details to brewer@island.net  Make checks, money orders and Western Union transfers payable to Betty Brewer or Brewer Yacht Design, as my wife does all the banking.

We also accept Visa & MasterCard by phone, credit cards only.
No debit cards or PayPal, please.

Be sure to include your full mailing address. The plans cannot be sent via e-mail. All plans are shipped folded and via airmail.

We do not share customer information with anyone without the customer's express permission.

It usually takes 4 to 5 days for delivery in Canada, a week to the US, and 10 days to two weeks to the rest of the world. Mail to a few countries may take as much as three weeks.

Order Cost Canada United States International
Up to $50.00 $2.95 $5.15 $10.30
$50.01 to $100.00 $5.05 $10.30 $20.60
$100.01 to $500.00 $10.10 $20.60 $41.20
$500.01 and over  We will calculate best rate

Express delivery, please contact us.

Rolled prints are too expensive to mail, check with us on other options.

Mailing rolled prints costs 5 or more times the cost of folded prints.

 All plans are sold on a no exchange, no return basis
