ARAGOSA 60 Specs
  • LOA---60' 5"
  • LWL---51' 0"
  • BEAM---16' 7"
  • DRAFT---6' 0"
  • BALLAST---21000 lbs.
  • SAIL AREA---1547 sq. ft.
  • DISPLACEMENT---60225 lbs.
  • DISPL/LENGTH RATIO---203
  • SA/DISPL RATIO--- 16.1
  • PRISMATIC COEFF---.545
  • CAPSIZE SCREENING FACTOR---1.69
  • TANKS---300 gals. Fuel, 375 gals. Water

ARAGOSA 60
A 60' Auxiliary Ketch
Brewer Design #210

This yacht was designed for a Japanese client who planned to circumnavigate the South Pacific and, possibly, the globe. The hull was computer designed and lofted, and the frames made by a computer operated cutter to assure top accuracy and fairness. Construction is of aluminum to high standards of strength and durability, with closely spaced longitudinals on transverse frames. She is, indeed, very sturdy as befits a world cruiser.

Aragosa 60

click drawing to see larger image

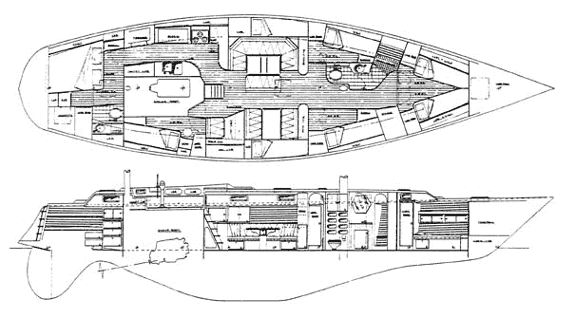

The accommodations offer six private staterooms plus two pilot berths in the saloon. There is a very workable galley with good counter space, ample seating for dining and entertaining, and two heads, including one with a large stall shower/sauna. With the potential to accommodate 11-12 people in privacy, the Aragosa 60 is quite suitable for a first class charter operation.

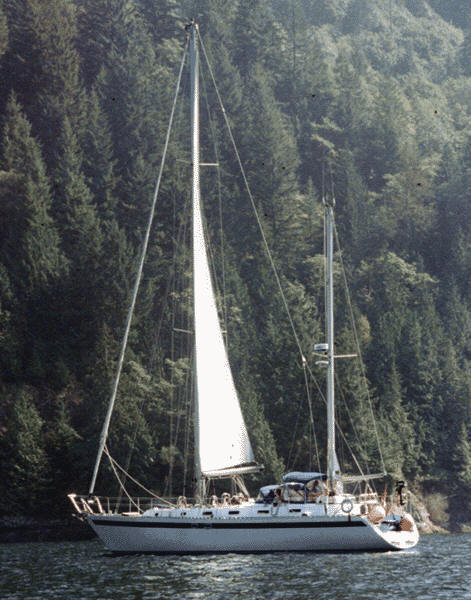

Aragosa 60

click photo to see larger image

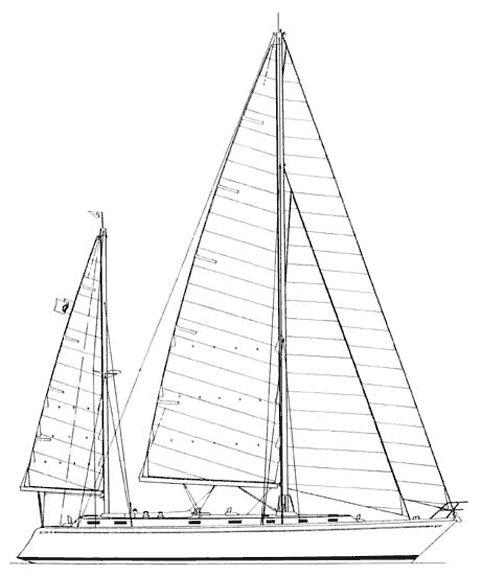

The ketch rig has a relatively small mizzen for maximum efficiency on the wind but still has the advantage of balancing nicely under a wide variety of reduced sail combinations. It is a very versatile rig and one that does not need a large crew to handle it, or require expensive and exotic equipment. Masts are keel stepped for strength and strongly supported.

Aragose 60

click drawing to see larger image

Still, there is no doubt that yachts of this size and class are a world apart from the average cruising yacht. The first yacht built to this design is a standout in any company, turning heads wherever she sails.



Study Plans: $120 US

Complete Plans: $2995 US

Ordering Information



Study plans contain sufficient drawings to price out materials or obtain a professional bid; the cost of study plans is credited if complete plans are later ordered. Complete plans include rights to build one boat, plus reasonable consultation during construction.
