GREY GOOSE Specs
LOA---47' 7" LWL---43' 10" BEAM---13' 11" DRAFT---5' 11" BALLAST---13000 lbs. SAIL AREA---990 sq. ft. DISPLACEMENT---31700 lbs. DISPL/LENGTH RATIO---168 SA/DISPL RATIO---15.8 PRISMATIC COEFF---.53 CAPSIZE SCREENING FACTOR---1.76 TANKS---150 gals. Fuel, 150 gals. Water

GREY GOOSE
A 47' Auxiliary Cutter
Brewer Design #216

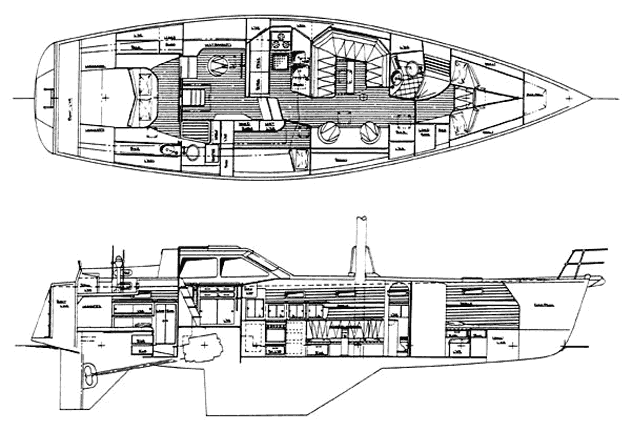

This yacht was designed for an owner who required a fast auxiliary cutter suited for extended cruising with a small crew. Stress was placed on a comfortable pilot house for watch keeping in adverse weather. A settee-berth in the pilot house, above the midship cabin, allows the helmsman to have company while on watch.

Three guests can be accommodated in a roomy forward cabin plus a single berth midship cabin. There is good stowage throughout including a large forepeak, twin lazarettes and an unusual aft locker designed to accept a rigid bottom inflatable dinghy.

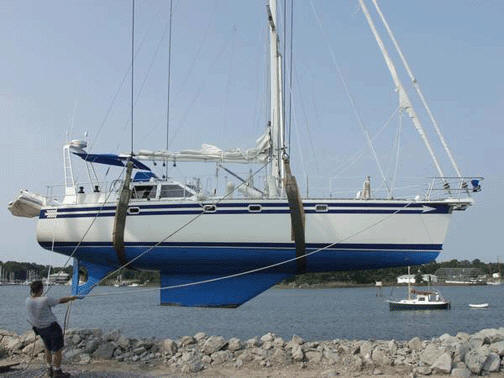

Construction is of aluminum with widely spaced athwartship frames and closely spaced longitudinals. The hull is of fully developed shape, not the radius bilge form often seen in metal yachts. The rudder is carried on a stout skeg with the propeller protected in an aperture instead of the spade rudder and exposed prop and shaft usually seen on yachts of this type. This gives additional directional stability, a stronger rudder, and a rudder less prone to stall when spun hard over in an emergency.

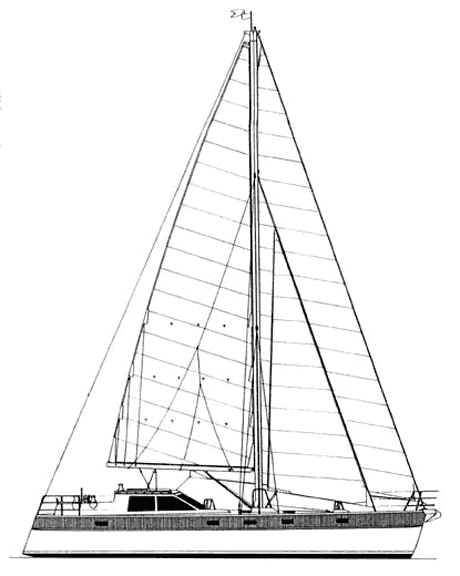

The rig is a quite conventional double spreader cutter. Running backstays can be set up to provide extra support in heavy weather and to keep the staysail stay taut. Sail area is generous but not overpowering as the long waterline hull, with its low displacement/length ratio, will be easily driven.

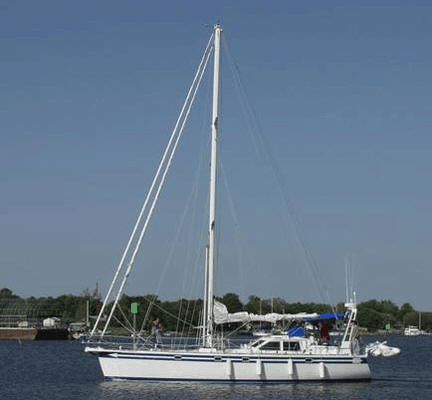

GREY GOOSE has lived up to her expectations as a fast and comfortable cruiser, well suited for coastal voyages or deep sea passages.

Study plans contain sufficient drawings to price out materials or obtain a professional bid; the cost of study plans is credited if complete plans are later ordered. Complete plans include rights to build one boat, plus reasonable consultation during construction.
